| Product SKUs | |

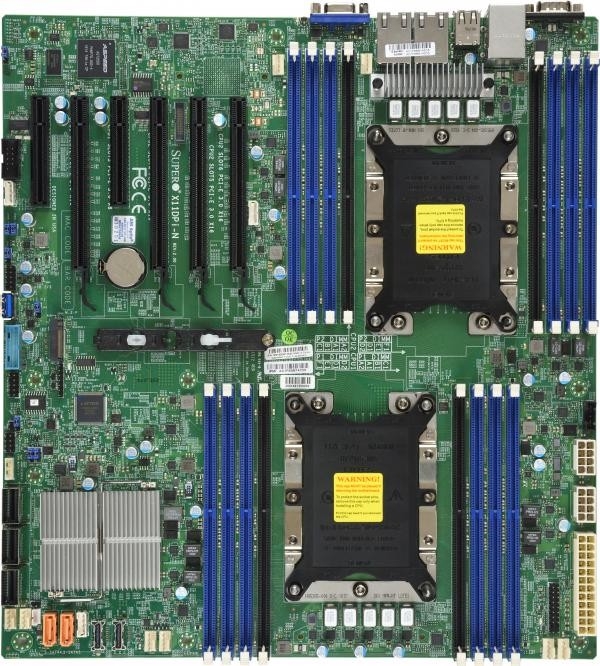

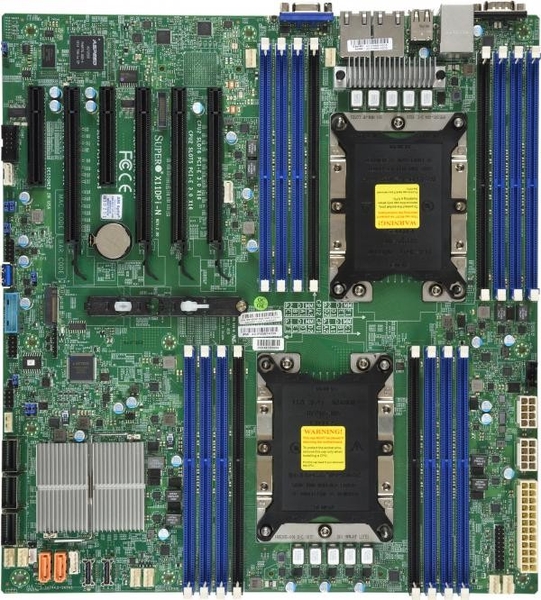

| MBD-X11DPi-N | X11DPi-N |
| Physical Stats | |
| Form Factor | E-ATX |
| Dimensions | 12" x 13" (30.48cm x 33.02cm) |
| Processor/Cache | |
| CPU | 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, |
| Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s | |
| Cores / Cache | Up to 28 cores |
| Note | BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP |
| BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| System Memory | |
| Memory Capacity | Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz |
| Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots; | |
| Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only); | |
| Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM |
| DIMM Sizes | RDIMM: 64GB |
| LRDIMM: 128GB | |
| 3DS LRDIMM: 256GB | |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) | |
| On-Board Devices | |
| Chipset | Intel® C621 |
| SATA | Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| IPMI | ASPEED AST2500 |
| Network Controllers | Dual LAN with 1GbE LAN with Intel® X722 |
| Graphics | Aspeed AST2500 BMC |
| Input / Output | |
| SATA | 14 SATA3 (6Gbps) port |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 4 USB 2.0 ports (2 rear + 2 headers) |
| 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) | |
| Video Output | 1 VGA port |
| Serial Port / Header | 2 COM Ports (1 rear, 1 header) |
| TPM | 1 TPM Header |
| Expansion Slots | |
| PCI-E | 4 PCI-E 3.0 x16, |
| 2 PCI-E 3.0 x8 | |
| M.2 | M.2 Interface: PCI-E 3.0 x4 |
| Form Factor: 2260, 2280, 22110 | |
| Key: M-Key | |
| System BIOS | |
| BIOS Type | AMI UEFI |
| Management | |
| Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| PC Health Monitoring | |
| Voltage | +12V, +3.3V, +5V, +5V standby, 3.3V standby, Monitors CPU voltages |
| FAN | 8x 4-pin fan headers (up to 8 fans), PWM fan speed control |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, PECI |
| LED | CPU / System Overheat LED, UID/Remote UID, BMC/IPMI Heartbeat LED, Power LED |
| Other Features | ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, SDDC, UID |
| Operating Environment | |
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
