| Product SKUs | |

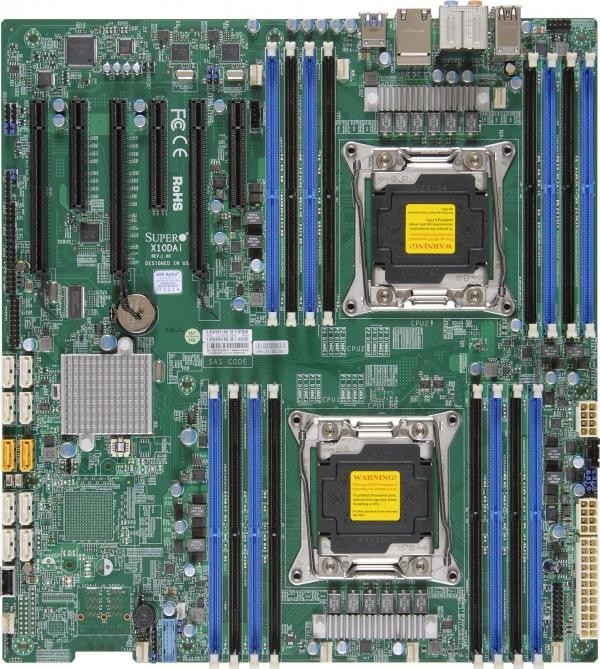

| MBD-X10DAi | X10DAi |
| Physical Stats | |
| Form Factor | E-ATX |
| Dimensions | 12" x 13" (30.5cm x 33.0cm) |
| Processor/Cache | |
| CPU | Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. |
| Dual Socket LGA-2011-3 (Socket R3) supported, CPU TDP support Up to 160W TDP, 1 QPI up to 9.6GT/s | |
| Cores / Cache | Up to 22 cores † / Up to 55MB† cache |
| Note | † BIOS version 2.0 or above is required |
| Note | ** Motherboard supports this maximum TDP. Please verify your system can thermally support. |
| System Memory | |
| Memory Capacity | 1TB 3DS ECC/non-ECC RDIMM, DDR4-2400MHzUp to 2TB 3DS ECC LRDIMM, DDR4-2400MHz, in 16 DIMM slots |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB |
| LRDIMM: 32GB, 64GB | |
| 3DS LRDIMM: 128GB | |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices | |
| Chipset | Intel® C612 |
| SATA | Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| AHCI SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Controllers | Dual LAN with Intel® i210 Gigabit Ethernet Controller |
| Audio | RealTek ALC1150 HD Audio |
| Input / Output | |
| SATA | 10 SATA3 (6Gbps) port |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 5 USB 2.0 ports (2 rear + 2 via headers + 1 Type A) |
| 6 USB 3.0 ports (4 rear + 2 via headers) | |
| TPM | 1 TPM Header |
| Expansion Slots | |
| PCI-E | 3 PCI-E 3.0 x16, |
| 2 PCI-E 3.0 x8 | |
| 1 PCI-E 2.0 x4 (in x8 slot) | |
| System BIOS | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | Plug and Play (PnP) |
| PCI 2.3 | |
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | |
| SMBIOS 2.7.1 | |
| UEFI 2.3.1 | |
| Management | |
| Software | NMI, SuperDoctor® 5, Watchdog |
| Power Configurations | ACPI Power Management |
| Power-on mode for AC power recovery | |
| PC Health Monitoring | |
| Voltage | +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator |
| FAN | 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, Thermal Monitor 2 (TM2) support, PECI, Thermal Control for 8 Fan Connectors |
| LED | CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID |
| Other Features | Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC |
| Operating Environment | |
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 10% ~ 95% (non-condensing) |
